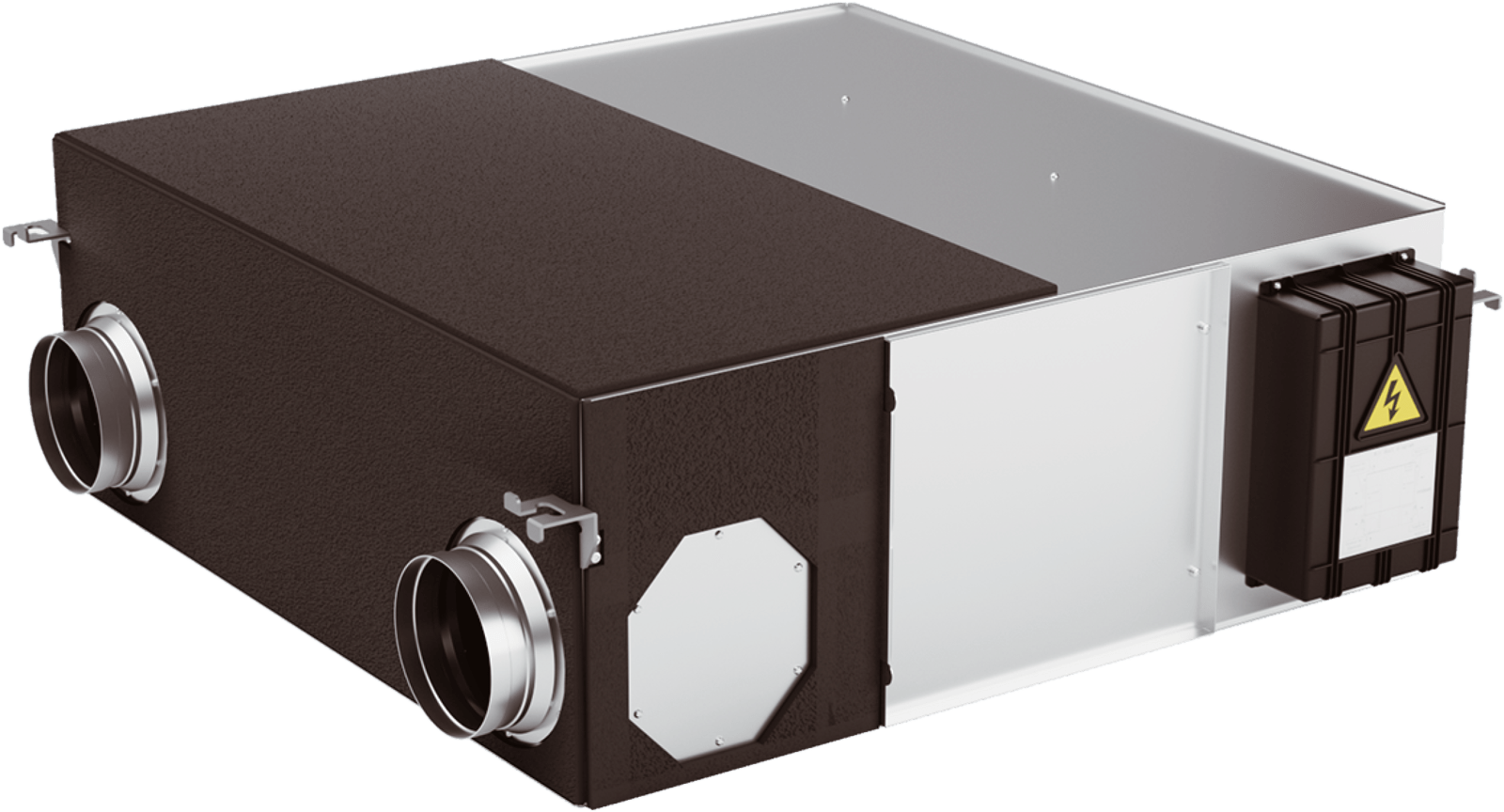

Ceiling Mounted Energy Recovery Ventilator
FRIGG is made of the best materials with first class workmanship.
Horizontal FLIXX FRIGG advantages:
- Eco design, the efficiency is high above 80%, match with Mitsubitshi Lossnay
- Smart control, it should be the most intelligent control system on the market
- Flexible installation. Parallel airflow, available with inverted installation, and reserved side ports for OA and EA
- DC motor, 10 speed, more energy saving
- Automatic defrosting / prehating+ supply heating for cold area use
SPECIFICATIONS
| Model | FRIGG FAH-250 Advance | FRIGG FAH-350 Advance | FRIGG FAH-500 Advance | FRIGG FAH-650 Advance |
| Airflow (m³/h) | 250 | 350 | 500 | 650 |
| External Pressure (Pa) | 85 | 160 | 120 | 120 |
| Current [A] | 0.48 | 0.98 | 1.15 | 1.65 |
| Power [W] | 62 | 140 | 165 | 252 |
| Temperature exchange efficiency [%] | 80-86 | 80-89 | 80-87 | 80-86 |
| Noise dB(A) | 28 | 32 | 34 | 35 |
| Net Weight (Kg) | 23 | 30 | 33 | 38 |
| Energy consumption per unit airflow [W/(m*/h)] | 0.25 | 0.4 | 0.33 | 0.38 |
| Enthalpy exchange efficiency [%],Cooling | 70-83 | 72-84 | 69-83 | 69-82 |
| Enthalpy exchange efficiency [%],Heating | 79-86 | 80-89 | 78-87 | 77-86 |
| Power supply | 220-240V, 50/ 60HZ, 1ph | |||
