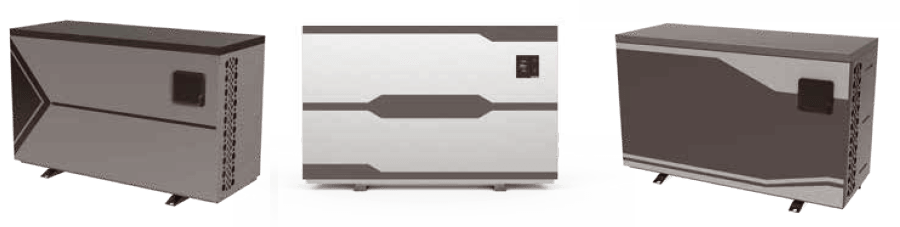

Not just an efficient swimming pool heat pump product as it is, FLIXX is aiming to build an awesome craft with all modern elements, such as double-side airflow outlet, matt-finished sheet metal cabinet, golden radiator etc.

Advanced Heat Pump Technology

Not only is the unit designed with superior appearance, but also powerful performance. With mature inverter technology combined with the adoption of Mitsubishi compressor, the unit can maintain high COP at 16 while running silently, which create wonderful swimming atmosphere for you!

Low Noise Running

A fully enclosed cabinet is specially designed for the compressor so that the running noise can be kept inside and the noise of the whole unit can maintain very low.

Double-side Airflow Outlet

The unit uses PHNIX own patent double-side airflow cabinet which through years of application in the market is proven to be highly efficient in heat exchange and outstandingly silent during operation.

Matt-finished Sheet Metal Cabinet

On the cabinet, the lively interplay of matt-finished surfaces combined with irregular shaped pattern is reminiscent of a high-performance swimming pool heat pump products.

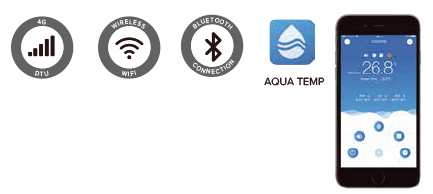

Modern Controller

The unit utilizes a smart big button and touch combined display which is incomparably easy to use. Moreover, the display can be installed simply by plugging in the machine and removes easily when maintenance and replacement.

SPECIFICATIONS:

FLIXX models	Njord SP 20-40	Njord SP D30-55	Njord SP 40-70	Njord SP 50-85	Njord SP 60-100	Njord SP3 70-115	Njord SP3 80-130
Advised pool volume(m3)	20-40	30-55	40-70	50-85	60-100	70-115	80-130
Operating air temperature (ºC)	-10~43
Rated power	1,6	2,13	2,36	3,22	3,17	4,91	5,28
Refrigerant	R32
Certification	CE
Air 27ºC/Water 26ºC/Humid. 80%
Heating Capacity(kW)	1.4~7.1	1.9~9.5	2.4~13	2.5~17.8	3.5~20	7.7~25	7.8~27.8
Consumed power (kW)	0.087-1.09	0.118-1.39	0.145-1.96	0.151-2.78	0.214-3.07	0.481~4.10	0.488~4.71
COP	16~6.5	16.1~6.8	16.5~6.6	16.5~6.4	16.3~6.5	16.0~6.1	16.0~5.9
Air 15ºC/Water 26ºC/Humid. 70%
Heating Capacity(kW)	1.1-5.5	1.4~7.0	1.6~9.1	2.3~12.8	2.5~14.7	4.9~18.9	5.0~21.2
Consumed power (kW)	0.157-1.22	0.205-1.48	0.238-1.89	0.353-2.66	0.357-3.19	0.754~4.11	0.769~4.81
COP	7~4.5	6.8~4.7	6.7~4.8	6.5~4.8	7~4.6	6.5~4.6	6.5~4.4
Air 10ºC/Water 26ºC/Humid. 64%
Heating Capacity(kW)	0.9-4.0	1.2-5.5	1.6-7.2	2.0-9.8	2.6-11.3	3.6-14.2	3.7-15.9
Consumed power (kW)	0.20-1.25	0.27-1.72	0.33-2.18	0.40-2.80	0.58-3.32	0.80-4.06	0.82-4.68
COP	4.5-3.2	4.5-3.2	4.8-3.3	4.9-3.5	4.5-3.4	4.5-3.5	4.5-3.4
Air 35 °C /Water 28 °C / Humid 80 %
Cooling Capacity(kW)	1.92-3.5	1.92-3.5	2.06-3.65	2.50-4.54	4.64-8.96	6.56-11.40	6.56-11.40
Consumed power (kW)	0.48-1.14	0.48-1.14	0.50-1.29	0.85-2.01	1.21-2.64	1.61-3.17	1.61-3.17
EER	4.0-3.07	4.0-3.07	4.12-2.83	2.94-2.26	3.83-3.39	4.07-3.60	4.07-3.60
Power Supply	220-240V~/1Ph					380V~/3N
Fan Quantity	1	1	1	1	1	1	1
Fan Speed (RPM)	400-700	400-750	400-800	400-750	500-750	500-800	500-850
Sound Pressure 1m dB(A)	36-45	36-46	37-47	40-50	41-51	43-53	45-54
Sound Pressure of 50% capacity at 1m dB(A)	42	43	44	44	45	47	47
Sound Pressure 10m dB(A)	16-25	16.5-27	19-28.5	20-30	21-31	23-33	25-34
Water Connection (mm)	50
Water FlowVolume (m3/h)	2,4	3,2	4,1	5,2	5,6	10,3	12,5
Water Pressure Drop (max) kPa	2	3	4	5	6	7	8
Net Dimensions L/W/H (mm)	1030*455*635	1030*455*635	1030*455*635	1130*500*800	1210*530*900	1210*530*900	1210*530*900

Warranty of quality

Njord is guaranteed of 7 year warranty on its compressor and 1 year warranty on its labor cost.
