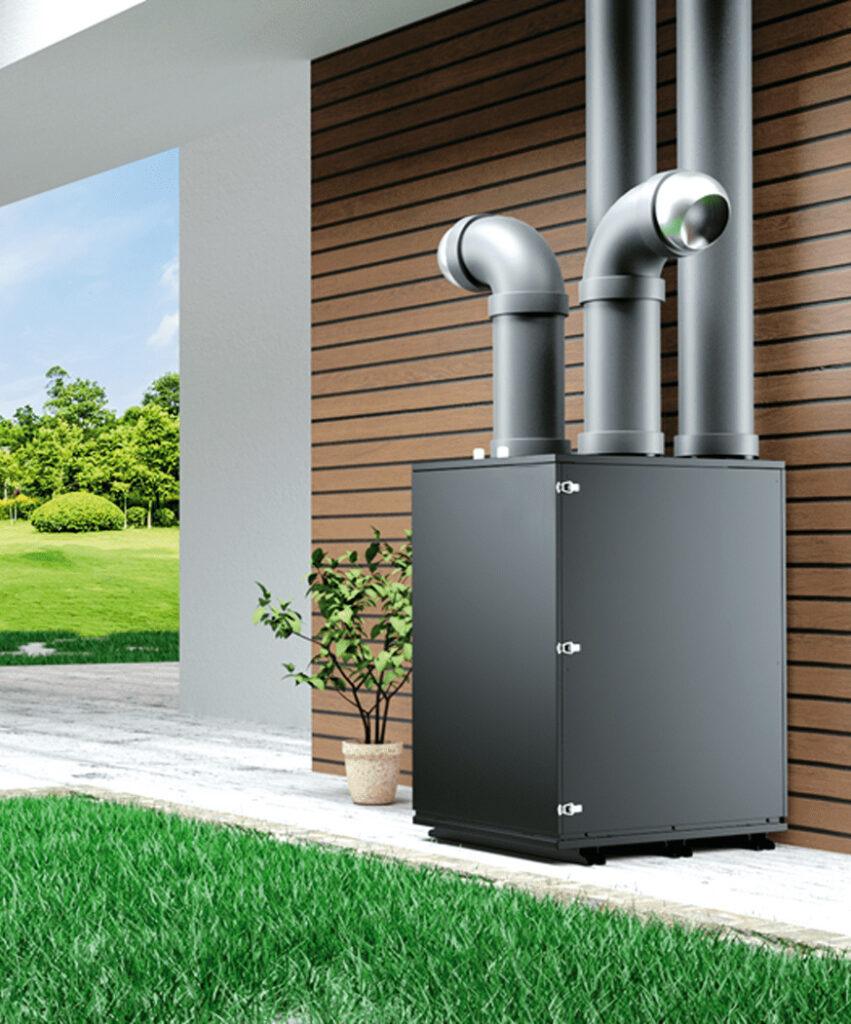

Fresh Air Heat Pump
NOTT is made of the best materials with first class workmanship.
Up to 90 % Heat + 80 % Humidity Recovery
Cross-counterflow enthalpy heat exchanger recovers heat and moisture from the exhaust air without mixing streams. Washable, anti-mold membrane rated for up to 15 years — no frosting down to −30 °C, condensate-free in normal conditions.
DC Inverter Compressor (GMCC)
Adjustable-speed DC inverter compressor matches output to load — higher efficiency, quieter operation, smoother start-stop and faster temperature control than fixed-frequency compressors. Operating range −15 °C to 50 °C. R32 refrigerant.
EC Fans — 10 Speeds
Forward EC motors with 0–10 V control, 10 speeds, low vibration and low noise (from 37 dB(A)). Meets ErP 2018 ecodesign requirements for energy-efficient ventilation.
100 % Auto Bypass
Motorised bypass opens automatically in summer when outdoor conditions allow free cooling without heat exchange — controlled by the outdoor temperature sensor, no manual switching needed.
Multi-Stage Filtration
Standard G4 primary + F8 fine filters remove dust, pollen and PM2.5 (over 95 % filtration efficiency) before air reaches the heat exchanger. Optional air-disinfection filter available for higher filtration.
A Energy Class · ErP 2018
Verified per EU Ecodesign Regulation 1254/2014: all three NOTT models — FAHP-35, FAHP-60, FAHP-90 — rate Energy Class A, with internal & external air leakage under 5 %.
SPECIFICATIONS
| AC-HTPF35 | AV-HTPF60 | AV-HTPF90 | |
| AIRFLOW & PRESSURE | |||
| Rated airflow, m³/h | 350 | 620 | 950 |
| External static pressure, Pa | 100 | 100 | 100 |
| VENTILATION MODE — ENERGY RECOVERY | |||
| Recovery type | Enthalpy (HPERV) | ||
| Temperature efficiency (heating), % | 77 | 78 | 77 |
| Temperature efficiency (cooling), % | 72 | 72 | 73 |
| Enthalpy efficiency (heating), % | 76 | 77 | 70 |
| Enthalpy efficiency (cooling), % | 70 | 65 | 66 |
| Input power (ventilation mode), W | 185 | 451 | 788 |
| Input current (ventilation mode), A | 1.67 | 3.77 | 3.93 |

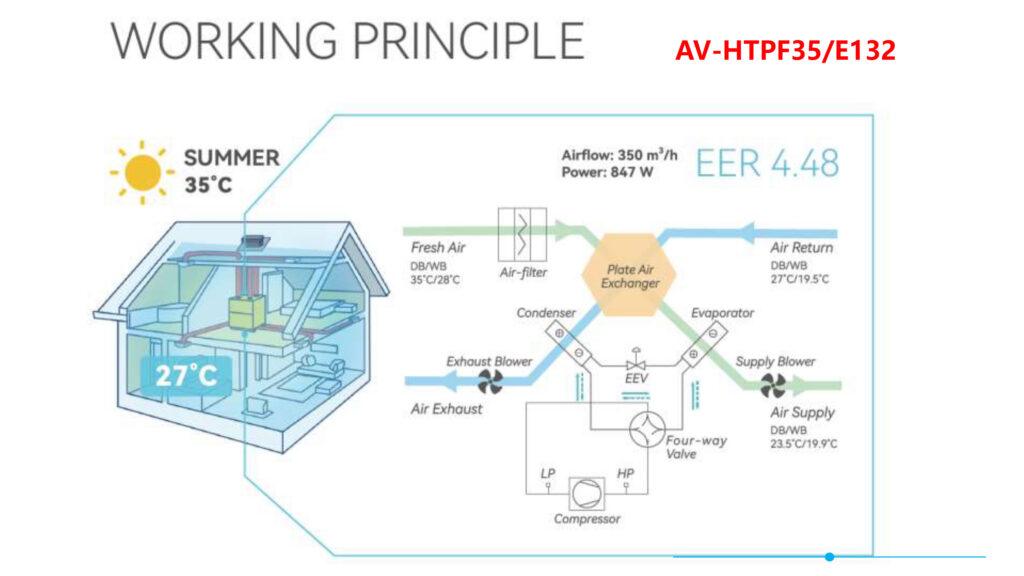

| COOLING — INDOOR 27 °C/19.5 °C · OUTDOOR 35 °C/28 °C | |||
| Nominal cooling capacity, kW | 3.8 | 6.4 | 8.3 |
| Input power (cooling), kW | 0.85 | 1.24 | 1.49 |
| EER | 4.48 | 5.14 | 5.58 |

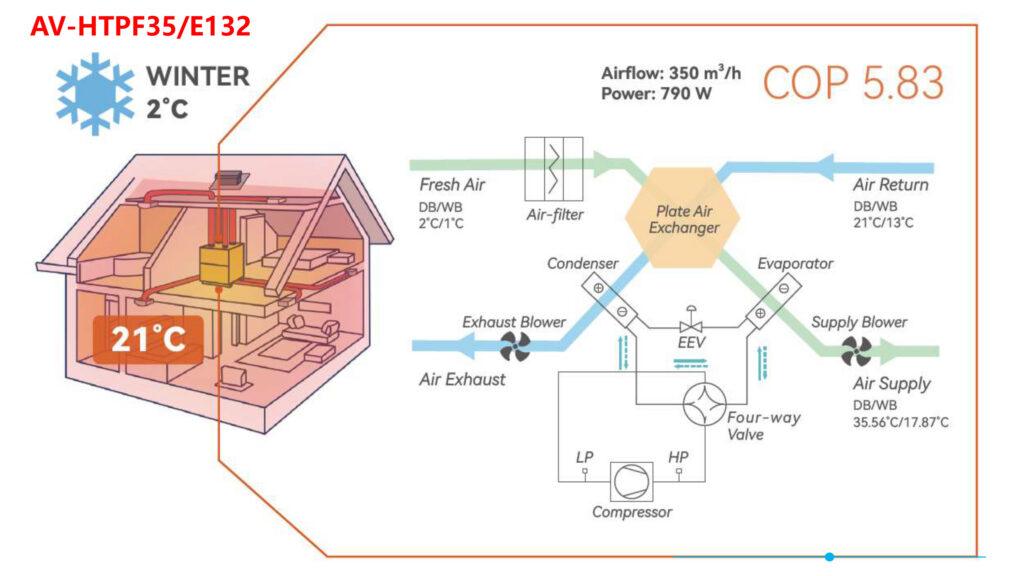

| HEATING — INDOOR 21 °C/13 °C · OUTDOOR 2 °C/1 °C | |||
| Nominal heating capacity, kW | 4.6 | 6.3 | 8.9 |
| Input power (heating), kW | 0.79 | 1.03 | 1.43 |
| COP | 5.86 | 6.09 | 6.22 |
| ELECTRICAL & ACOUSTICS | |||
| Compressor / fans | DC inverter compressor · EC fans | ||
| Power supply | 220 V~ / 50–60 Hz, 1 Ph | ||
| Sound power level, dB(A) | 37 / 42 | 40 / 44.6 | 41 / 46 |
| Refrigerant | R32 | ||
| Refrigerant charge, g | 370 | 500 | 660 |
| PHYSICAL | |||
| Unit dimension W×L×H, mm | 600×760×1100 | 740×1050×990 | 740×1090×1130 |
| Air inlet / outlet diameter, mm | 195 | 245 | 245 |
| Net weight, kg | 135 | 165 | 190 |
