Heat Pump from the Top Manufacturer
R290 NEW Inverter Air to Water Heat Pump is a combination of all the modern elements, specially for Northern markets
ICEFALL 2-11 AI PRO
Compact · 1-phase · Single circuit
Heating A7/W35 1.90–10.69 kW
Max power input. 3.6 kW
L×W×H mm 1370×590×915
Net weight 133 kg
ICEFALL 4-17 AI PRO
Standard · 3-phase · Single circuit
Heating A7/W35 4.46–16.81 kW
Max power input. 7.4 kW
L×W×H mm 1370×590×915
Net weight 148 kg
ICEFALL 6-24 AI PRO
High-capacity · 3-phase · Single circuit
Heating A7/W35 6.0–22.69 kW
Max power input. 9.71 kW
L×W×H mm 1370×590×1335
Net weight 200 kg
Technology Highlights
AI Energy Management
Real-time optimisation trained on 25,000+ heat pumps. Maximises COP in all climates.
Dynamic Grid Adaptation
Integrates European dynamic electricity tariffs — auto-adjusts compressor to cut running costs.
R290 Leak Protection
Real-time refrigerant monitoring. Auto-stop + simultaneous alert on controller & app
Predictive Maintenance
AI fault forecasting 1 hour ahead. Automated intervention minimises downtime & site visits.
EVI – 80°C/−30°C
EVI compressor with 30% higher COP. A+++ at 35 °C & 55 °C. Outlet up to 80 °C.
31 dB(A) Ultra-Quiet
Full suspension compressor + composite sound insulation. Night mode. TA Lärm compliant.
φ5 Fin Tube — +20% COP
Industry-first φ5 copper fins vs. φ7 R32 designs. Higher heat transfer coefficient.
Service-Friendly Design
Side-panel PCB access. Snap-fit assembly. 60% key component commonality across models.
SPECIFICATIONS:
| ICEFALL 2-11 AI PRO | ICEFALL 4-17 AI PRO | ICEFALL 6-24 AI PRO | |
|---|---|---|---|
| SKU | icefall-ai-pro-2-11 | icefall-ai-pro-4-17 | icefall-ai-pro-6-24 |
| Type | Compact · 1-phase · Single circuit | Standard · 3-phase · Single circuit | High-capacity · 3-phase · Single circuit |
| Energy class 35/55 °C | A+++ / A+++ | A+++ / A+++ | A+++ / A+++ |
| Operating range | −30 to +45 °C | −30 to +45 °C | −30 to +45 °C |
| Max outlet temp. | 80 °C | 80 °C | 80 °C |
| Nominal capacity A7/W35, kW | 6 | 12 | 17 |
| COP at nominal (A7/W35) | 5.38 | 4.84 | 4.71 |
| Heating range A7/W35, kW | 1.90–10.69 | 4.46–16.81 | 6.0–24.06 |
| COP at nominal (A7/W55) | 3.41 | 3.24 | 3.25 |
| Heating range A7/W55, kW | 1.06–9.97 | 4.25–16.87 | 6.0–22.69 |
| Heating BOOST @ −15 °C/W35, kW | 5.9 | 11.35 | 14.23 |
| Heating BOOST @ −15 °C/W55, kW | 5.55 | 11.44 | 14.04 |
| SCOP at 35 °C | 5.56 | 5.09 | 5.17 |
| SCOP at 55 °C | 4.09 | 3.85 | 3.97 |
| Cooling capacity range, kW | 1.12–6.82 | 3.44–14.14 | 4.0–18.0 |
| Cooling power input range, kW | 0.57–2.54 | 1.01–5.14 | 1.7–7.2 |
| Compressor | Twin Rotary EVI · GMCC | Twin Rotary EVI · GMCC | Twin Rotary EVI · GMCC |
| Fan type | DC Motor | DC Motor | DC Motor |
| Max power / current, kW / A | 3.60 / 15.50 | 7.40 / 11.30 | 9.71 / 15.00 |
| Refrigerant / charge | R290 / 0.7 kg | R290 / 1.0 kg | R290 / 1.3 kg |
| Power supply | 220–240 / 1N~ / 50 | 380–415 / 3N~ / 50 | 380–415 / 3N~ / 50 |
| Water connection | G 1″ | G 1″ | G 1″ |
| Rated water flow, m³/h | 1.03 | 2.06 | 2.92 |
| Pump head @ rated flow, m | 7 | 7.8 | 10.4 |
| Sound pressure @ 1 m, dB(A) | 39 | 42 | 45 |
| Sound power (EN 12102), dB(A) | 48 | 51 | 51 |
| Net weight, kg | 133 | 148 | 200 |
| Dimensions L×W×H, mm | 1370×590×915 | 1370×590×915 | 1370×590×1335 |

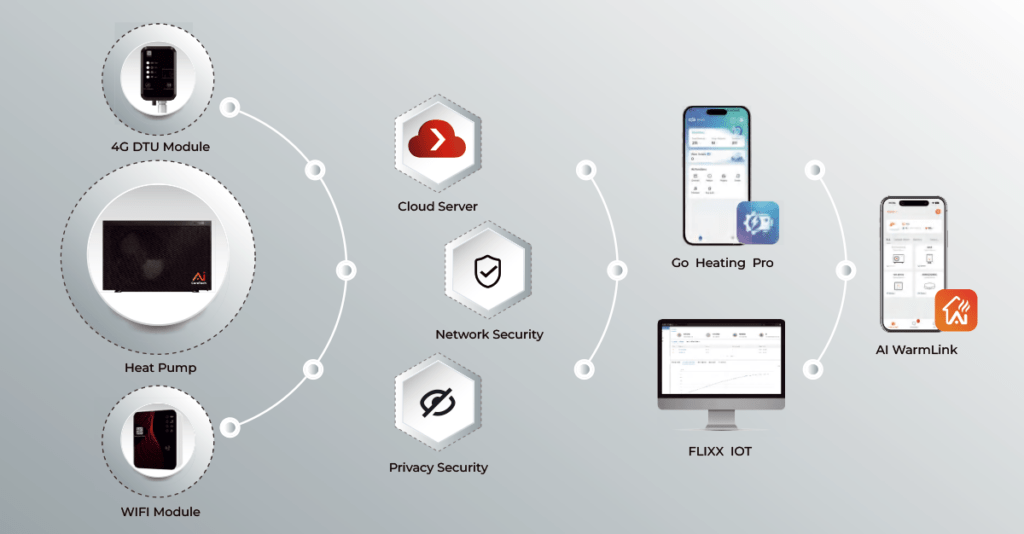

FLIXX AI Smart Ecosystem
AI WarmLink
Homeowner app — AI scheduling, NIKI GPT voice assistant, energy monitoring & dynamic tariff optimisation
Go Heating Pro
Installer & engineer app — commissioning, remote diagnostics, configuration & fault reporting
FLIXX IOT Platform
B2B fleet management — operational analytics, fault trends, spare parts inquiry & firmware OTA
AI Smart Assistant
Operate and ajust the heat pump via voice assistant
Operating Envelope
- Expanded Capacity Range: first 4 kW & 7 kW EVI residential heat pumps from FLIXX, covering a wider range of household applications
- Jointly Developed Drive System: Co-developed with GMCC, the back-EMF motor is precisely matched to EVI operating conditions, balancing high performance with long-term reliability
Smart Ecosystem
Controllers & optional indoor units
Color Screen Controller Wired Display
New UI design · 7″ resistive touch screen — the new screen makes sliding operation much smoother. Modes: Heating · Cooling · DHW. Universal Modbus — compatible across all FLIXX heat pump generations. One-Key Mute & Night Mode timer.
Included in standard supply
CP502 10″ Centralized Controller
Central cascade controller with LAN / Ethernet for remote management. Manages up to 32 units — multi-mode, balance & shift operation, curve recording and remote firmware upgrade.
Optional — central / cascade controller
HydroBox Flixx-10 Indoor Hydraulic Module
Wall-mounted indoor hydraulic module, compatible with all FLIXX heat pumps. Built-in 3+6 kW electric heater, 10 L expansion tank, ultrasonic flow meter (COP calc), 3-way DHW valve, 3-bar safety valve, auto air-purge & pressure sensor. Colour controller. Available in black / grey / white.
Optional — indoor hydraulic module
Multifunc All-in-One Indoor Cabinet
Floor-standing all-in-one cabinet for all FLIXX heat pumps: 180 L DHW tank, 60 L buffer tank, circulation pump, 12 L expansion tank, 3-way DHW valve. Inline 3+6 kW heater + 2 kW DHW heater. Colour controller. 3-phase. Galvanized cabinet · 665×595×1800 mm · 137 kg.
Optional — all-in-one indoor unit
