Installation with Hydrobox

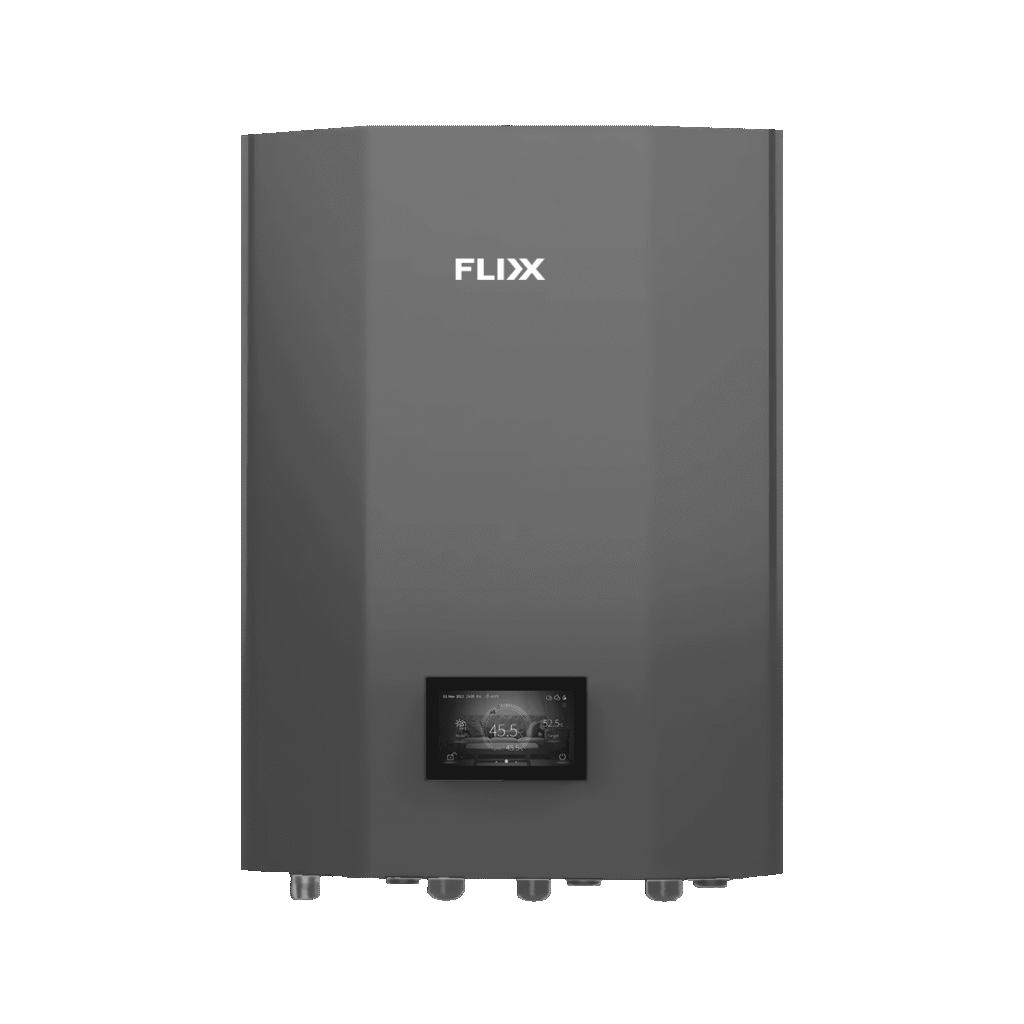

FLIXX provides the monoblock heat pump (without circulation pump) and the HydroBox. HydroBox Flixx-10 includes one small size built-in buffer tank, one main circulation water pump, one space heating/cooling circulation water pump, one DHW pump, safety valve, water charge valve and expansion tank, electrical heater. When install the unit, installer should connect the heat pump directly to the Hydrobox while the buffer tank (for space heating/cooling) is considered whether to add or not.

NB! Storage water tank is needed for the domestic hot water application. Temperature sensor should be added in the storage water tank.

Component Integration

In addition to the heat pump unit, the HydroBox Flixx-10 is an integration of all the main components, including the water pump, valves, filters, constant pressure water refill device, electric control, etc. This unit has one of the thinnest designs on the market with a depth of 295 mm.

SPECIFICATIONS:

Power Supply	380-415V/3N/50Hz
Water Temp. Range (C)	5-75
Filling Water Connection (inch)	3/4
Drain Connection (inch)	3/4
Heat Pump Side Water Connection (inch)	1
Heating Side Water Connection (inch)	1
Hot Water Side Water Connection (inch)	1
Max. Water Pressure (bar)	3
Water Head * (m)	9.8
Water Pressure Drop * (kPa)	22
Expansion Tank (L)	10
Electrical Heater (kW)	3+6
Sound Pressure at 1 Meter * (dB(A))	35
Dual Zone Control	Yes
Net Weight (kg)	53
Unit Dimensions (L x W x H) mm	665x485x295

* The test flow rate is 1.7m³/h
