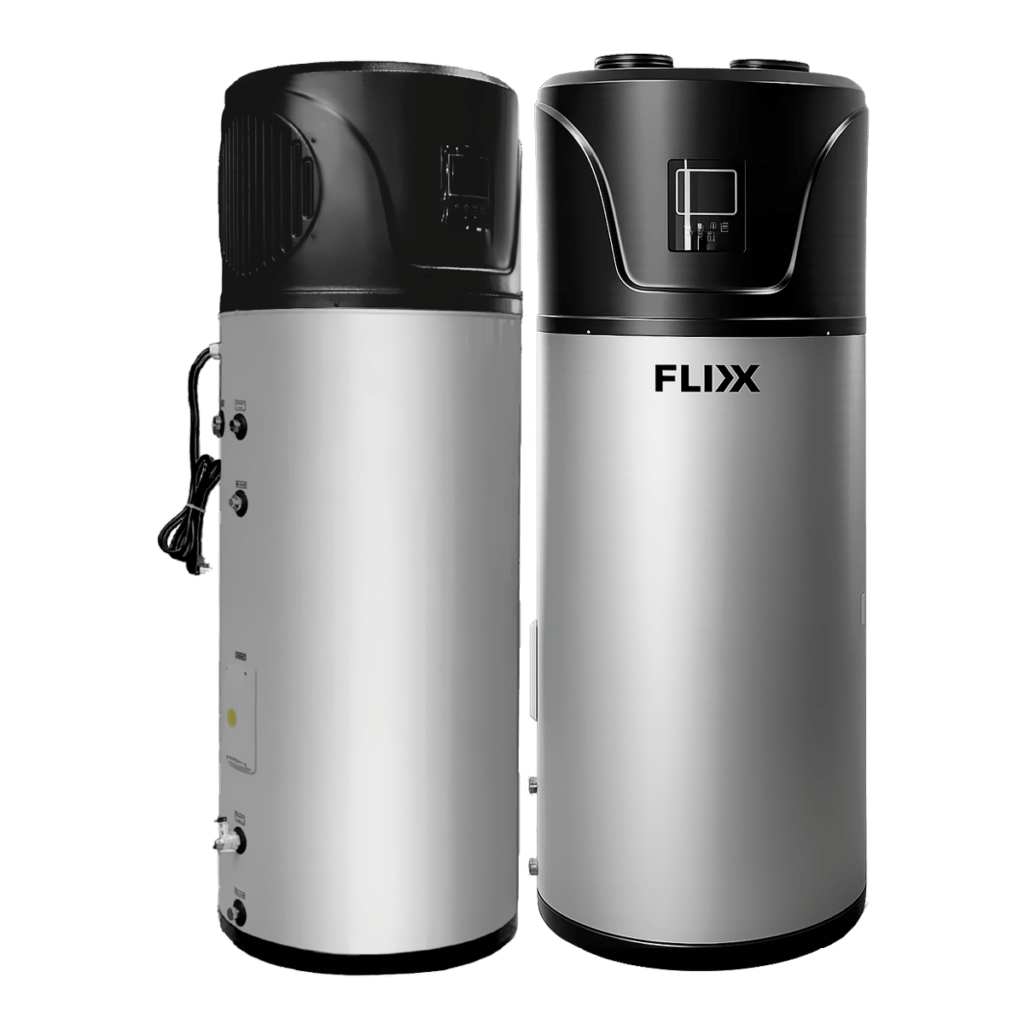

All-in-one heat pump cylinder — R290, Wi-Fi, independent operation
Available volumes: 150 · 200 · 300 L
Function of All In One Air Source Water Heater:
- By absorbing heat from the air, the water is heated and stored in the tank, ensuring 24-hour water use throughout the day.
- Ensure sufficient water volume, stable water temperature, avoid water flow and temperature fluctuation and prevent burning.
- Can be used in hot water circulation system, achieving instant heating without waiting, improving comfort and avoiding water waste.
- Cold air can be generated during the process of heating, and can be send to room for cooling purpose.
Advantage of All In One Air Source Water Heater:
- The inner tank adopts international standard SUS304/SUS316L/Duplex2205 stainless steel, which is hygienic, safe, corrosion-resistant and durable.
- Adopting automatic welding technology, ensuring precise and stable welding, achieve long service life of the product.
- It is possible to produce any volume of water tanks between 150L to 300L, the tank can be used with heat pump, wall-mounted boiler, solar heater and other system.
- The water tank is insulated with high-density polyurethane foam, one stage formation, with a 360 degree surround temperature lock, low heat loss, and good insulation effect.
- The outer case of the water tank is made of galvanized color steel, which is high-end, fashionable and beautiful.
- The optimized design of inlet and outlet greatly improves water flow efficiency, the design is more reasonable and the tank is easier to install.
- Equipped with electric heating, it can meet the needs of insufficient heating or maintenance of low-temperature heat pumps.
- Can be customized to match solar energy use, more energy efficient.
- Adopting well-known brand compressors and fluorine system accessories, the system is more stable and energy efficient.
| COP (rated) | 4.0 |
| Heating capacity | 1 800 W |
| Compressor power | 450 W |
| Backup E-heater | 1 500 W |
| Max water temp | 70 °C |
| Inner tank | Duplex |
| Insulation | PU foam, 50 mm |
| Refrigerant | R290 (GWP 3) |
| Condenser | Micro-Channel HEX |
| Noise (1 m) | ≤53 dB(A) |
| Parameter | HPWH-150 | HPWH-200 | HPWH-300 |
|---|---|---|---|
| Electrical | |||
| Power supply | 220–240 V / 50 Hz | ||
| Rated pressure | 10 bar | ||
| Control | Wi-Fi smart controller | ||
| Connections | |||
| Cold water inlet | 1/2″ Male | 3/4″ Male | 3/4″ Male |
| Hot water outlet | 1/2″ Male | 3/4″ Female | 3/4″ Female |
| PT safety valve | 3/4″ Female | ||
| Drain | 1/2″ Male | ||
| Dimensions & weight | |||
| Net Ø x H | Ø510×1627 | Ø560×1795 | Ø650×1870 |
| Net weight | 52 kg | 68 kg | 75 kg |
| Gross weight | 60 kg | 80 kg | 87 kg |
| Package (mm) | 575x575x1790 | 625x625x1910 | 720x720x2010 |
- Warranty:
2 years – complete unit incl. compressor
5 years – Duplex inner tank - Certifications:
CE, ErP, F-Gas, R290, EN 16147
